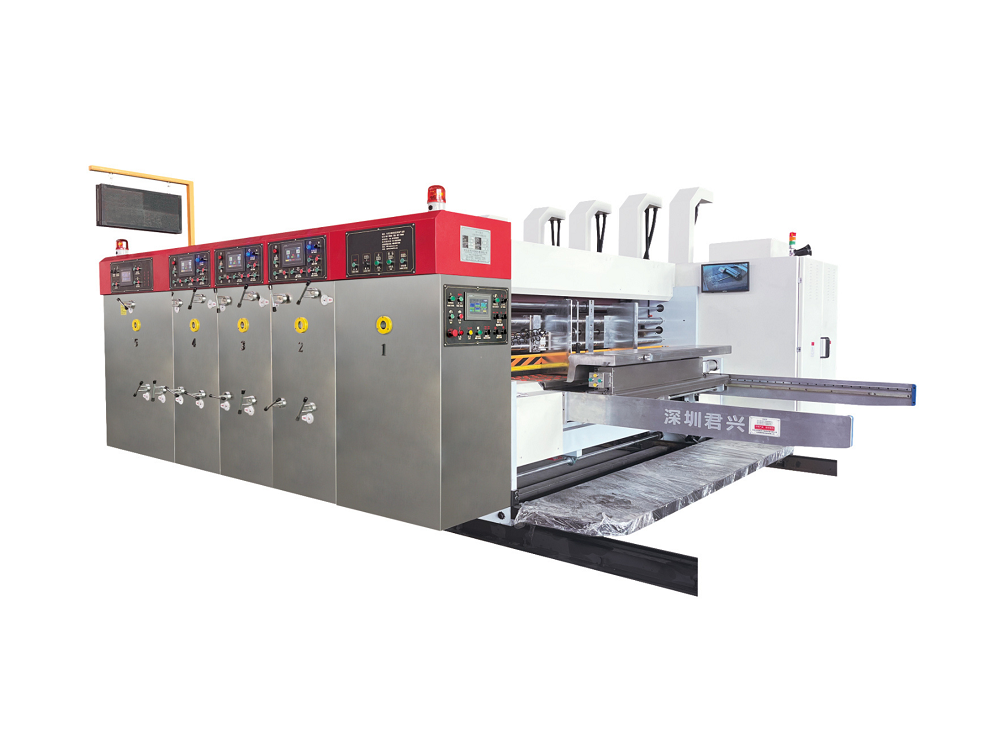

Flexo Printer 1224/1424/1628
The flexible, customizable corrugated finishing equipment will be provided to match your specific production needs
Technical Parameters
Model | 1224 | 1424 | 1628 |
Max. Feeding Paper Format (mm) | 1200×2550 | 1450×2550 | 1600×2950 |
Skip Feeding Paper Format (mm) | 1350×2550 | 1600×2550 | 1700×2950 |
Board Thickness Range (mm) | 2-11.5 | 2-11.5 | 2-11.5 |
Max. Printing Format (mm) | 1180×2400 | 1400×2400 | 1580×2800 |
Prting Plate thickness (mm) | 7.2 | 7.2 | 7.2 |
Printing Roller Diameter (mm) | 405 | 480 | 528 |
Design speed (pcs/min) | 200 | 200 | 180 |
Economic speed (pcs/min) | 120-180 | 120-160 | 100-150 |
Tinted Precision (mm) | ±0.5 | ±0.5 | ±0.5 |
Slotting Precision (mm) | ±1 | ±1 | ±1 |
Max. Groove Depth (mm) | 315 | 375 | 412 |
Min. Slotting Interval (mm) |
Positive Knife:230×60×230×60 Negative Knife:160×160×160×160 |
Positive Knife:245×60×245×60 Negative Knife:165×165×165×165 |
Positive Knife:245×60×245×60 Negative Knife:165×165×165×165 |
Max. Die Cutting Format (mm) | 1150×2450 | 1350×2450 | 1550×2950 |
