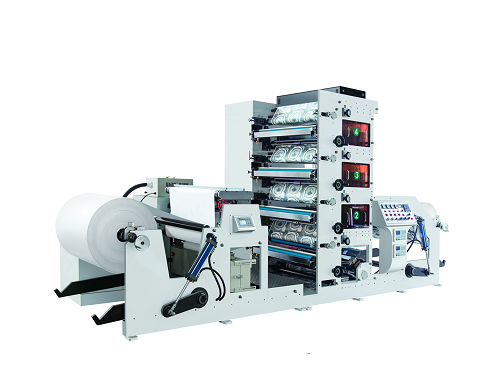

Flexo Printer
This machine is mainly used for printing on PE-coated paper, cup paper rolls, food packaging paper, and kraft paper. It is ideal for producing paper cup fans, food boxes, and other paper-based packaging products.
Introduction
This machine is mainly used for printing on PE-coated paper, cup paper rolls, food packaging paper, and kraft paper. It is ideal for producing paper cup fans, food boxes, and other paper-based packaging products.
Technical Parameters
| Model | RY850-4 | RY950-4 | RY1000-4 |
| Color No. | 4 colors | ||
| Printing Speed | 55-60m/min | ||
| Max.Unwinding Width | 860mm | 950mm | 1010mm |
| Max. Printing Width | 850mm | 940mm | 1000mm |
| Max. Unwinding Diameter | 1300mm | ||
| Max. Rewinding Diameter | 1300mm | ||
| Printing Length | 175-380mm | ||
| Total Power Consumption | 45kW | 45kW | 50kW |
| Registering Precision | ±0.10mm | ||
| Air Pressure | 0.6-0.8MP | ||
| Weight | 4500kg | 5000kg | 5500kg |
| This machines can be tailored to your specific production requirements | |||

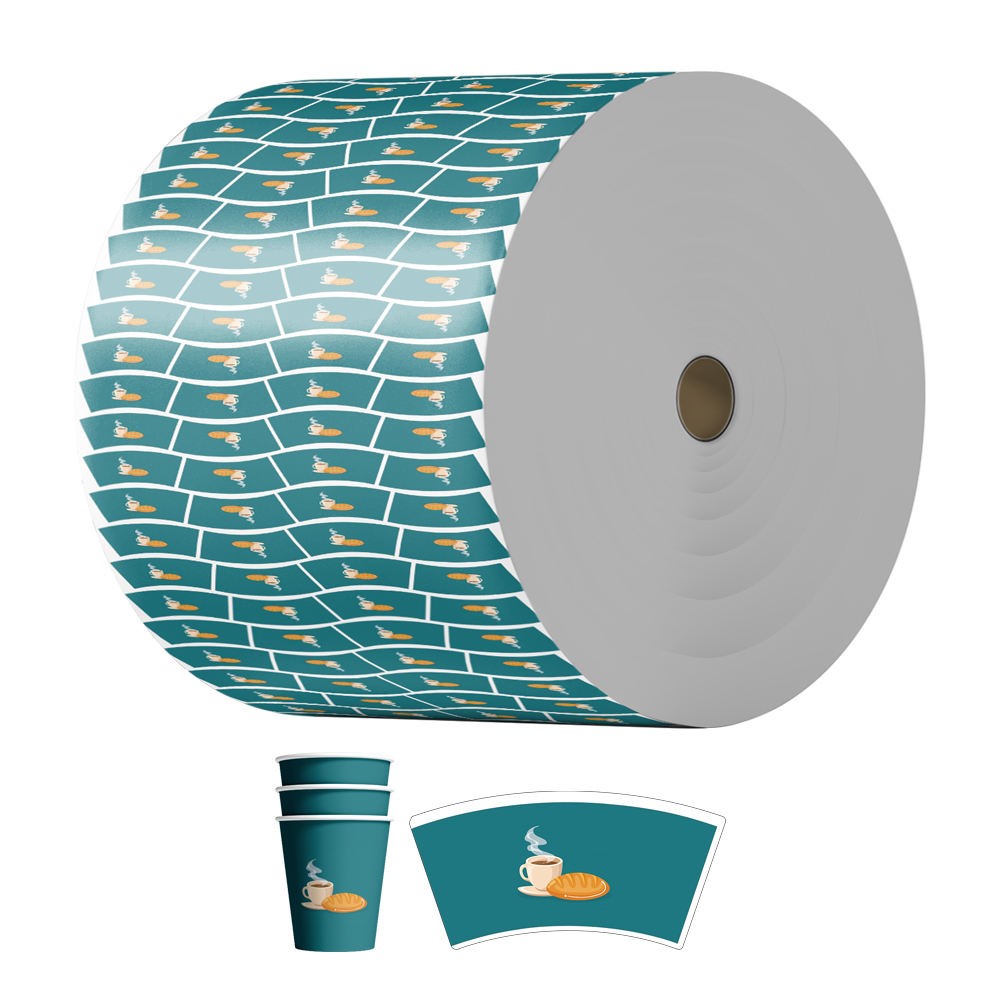

Finished Product
