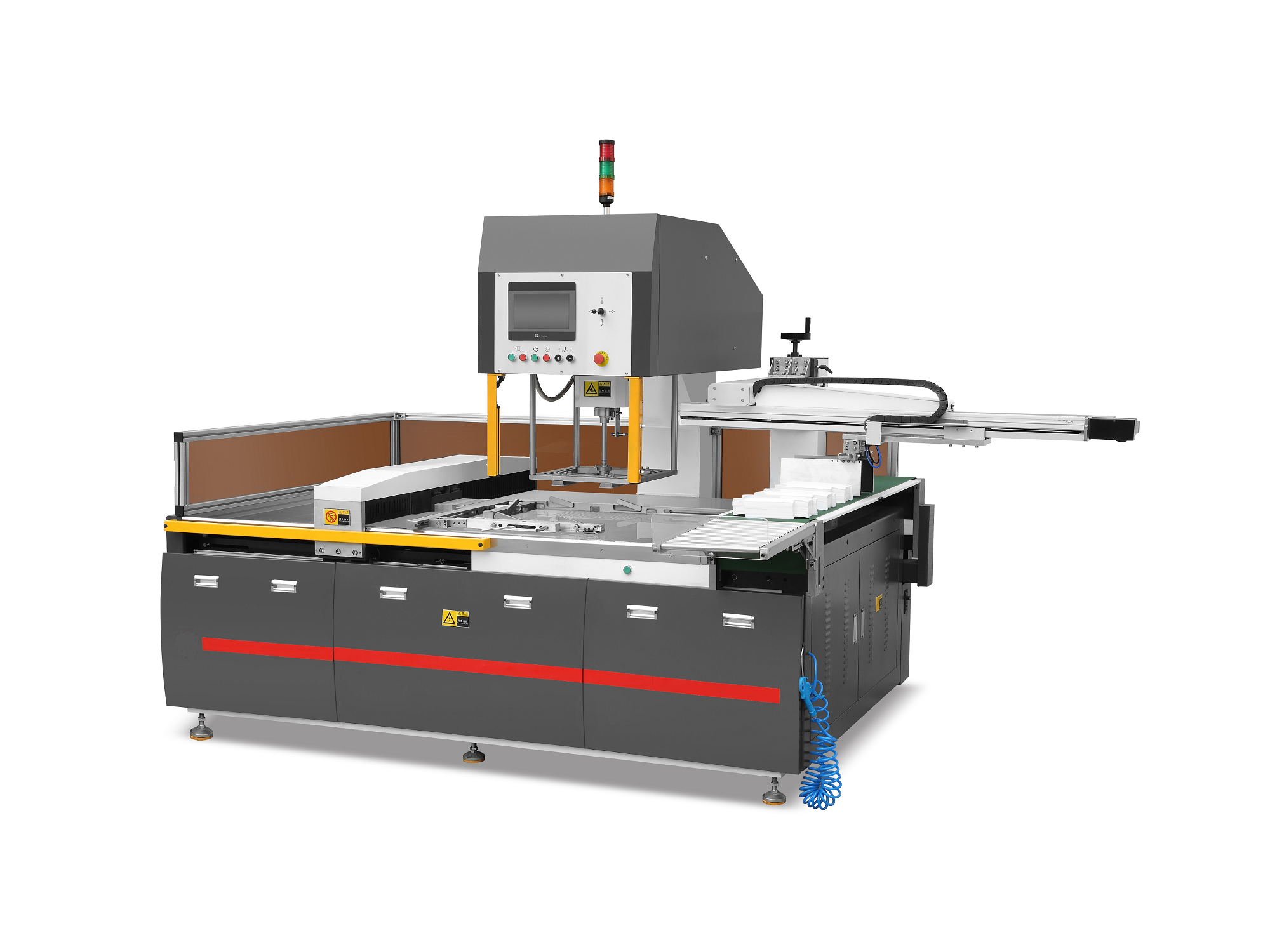

Blank Separator SPQF-1080TR
This series automatic blank separator machine is the professional equipment for automatic stripping folding boxes, tags, hangers, IML, paper labels, blister cards and plastic packaging
Introduction
This series automatic blank separator machine is the professional equipment for automatic stripping folding boxes, tags, hangers, IML, paper labels, blister cards and plastic packaging
Feature
180 degree rotary die
The robot replace the person to take the product
Hidden type servo motor and ball screw ensures a precise pilepositioning
Adjustable hydraulic system provides adjustable pressure for processing of different materials of different sizes and weight.
Stripping needles (rods) are quick and easy to change to fit different products format and patterns.
Automatic lubricating system carries out regular lubrication, which greatly extend the service life of the machine.
The operation panel adopts visual buttonto avoid safety accident caused by wrong operation. Its also easy and quick to program at the touch screen.
Safety fence at operation side protects the safety of personnel when the machine is running.
Technical Parameters
|
Model |
SPQF-1080TR |
|
Max sheet size(mm) |
1080x780 |
|
Min sheet size(mm) |
650x450 |
|
Max pile height(mm) |
100 |
|
Min pile height(mm) |
40 |
|
Bench height(mm) |
850 |
|
Max stripping size(mm) |
520x520 |
|
Min stripping size(mm) |
30x30 |
|
Stripping speed(times/min) |
15-22 |
|
Max force(bar) |
70 |
|
Air consumption(L/min) |
4 |
|
Power Consumption (kW) |
5.4 |
|
Machine dimension(mm) |
3600 x 2050 x 1950 |
|
Rotary die speed (s) |
10-80 |
|
Rotary die stroke |
0-180° |
|
Robot grip range (mm) |
30-300 |
|
Robot grip weight (g) |
50-1800 |
|
Machine Weight(kg) |
2600 |
|
Package Size(mm) |
3100 x 2250 x 2250 |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.

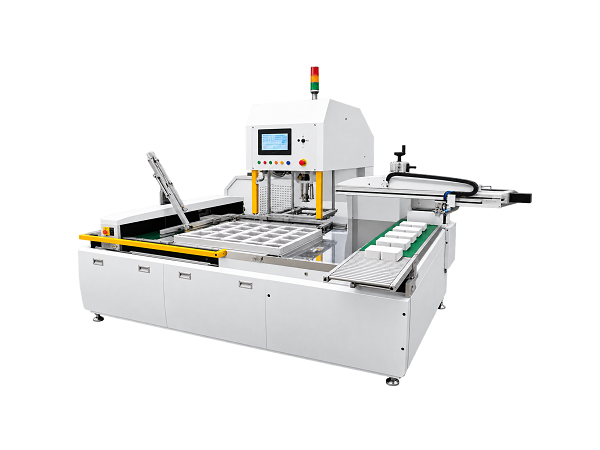

Blank Separator SPQF-1080CTR
