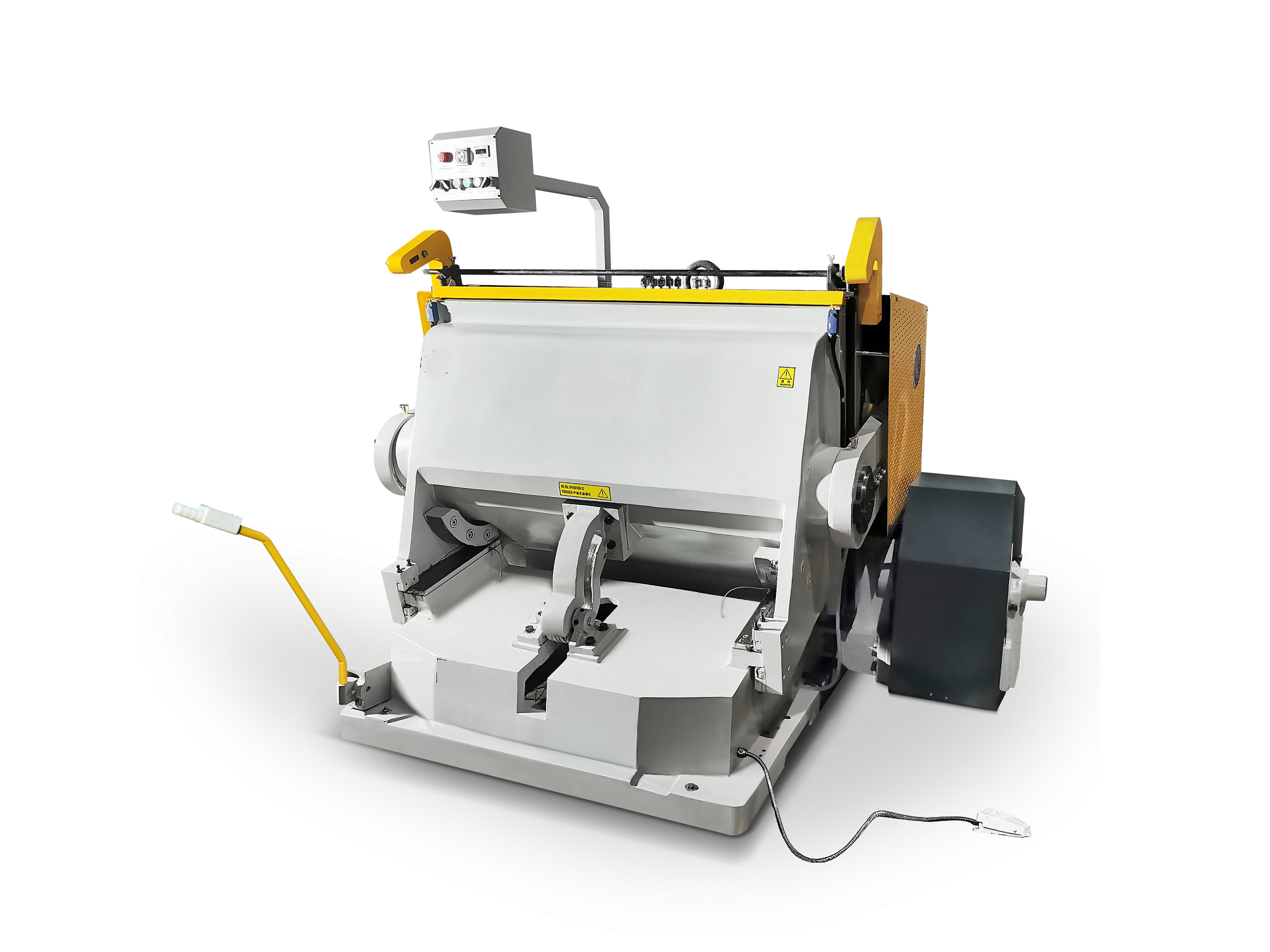

CE Die Cutting Machine ML-1300/1400
It is applicable to the fields of printing, packaging, decoration and plastic industries.
Introduction
ML series hand feeding die cutting & creasing machine, also called as clam shell die cutter, is a kind of special equipment for die cutting and creasing a wide range of materials, such as paper, cardboard, corrugated board, plastic sheet and leather. It is applicable to the fields of printing, packaging, decoration and plastic industries. ML series machine has been well accepted by the customers from home and abroad due to its outstanding performance, reliable in quality, easy for operating and low cost in price
Features
Sliding bearings are made of high quality alloy copper, thus to
enhance the effect of anti-friction and vibration reducing
Flywheel with big moment of force and large
pressure
High strength due to whole iron casting by using
high quality material for machine body
Single plate electromagnetic clutch is sensitive
and reliable
With functions of single piece, continuous and
opening delay operating, dwell range is adjustable from 0-99 seconds
Operating position is reasonably designed,
moving-bed can be opened to its optimum
Central lubrication system guarantees fine
lubrication and reduces friction
Safety protection system is reliable
Adjustable chase clamp structure can adapt all
kind of die mould plate
Easy to operate and maintain
Electric control system is in line with
international standard
CE standard type can be made upon request
Heating plate as option for die cutting plastic
sheet
Technical Parameters
Model |
ML1300 |
ML1400 |
Inner Chase Size |
1300×920mm |
1400×1000mm |
Working Speed |
16±2 strokes/min |
15±2 strokes/min |
Max. Length Of Cutting |
40m |
45m |
Motor Power |
5.5kw-6H |
5.5kw-6H |
Machine Weight |
6200kg |
6800kg |
Overall Dimensions |
2350×2100×1950mm |
2450×2100×2000mm |
