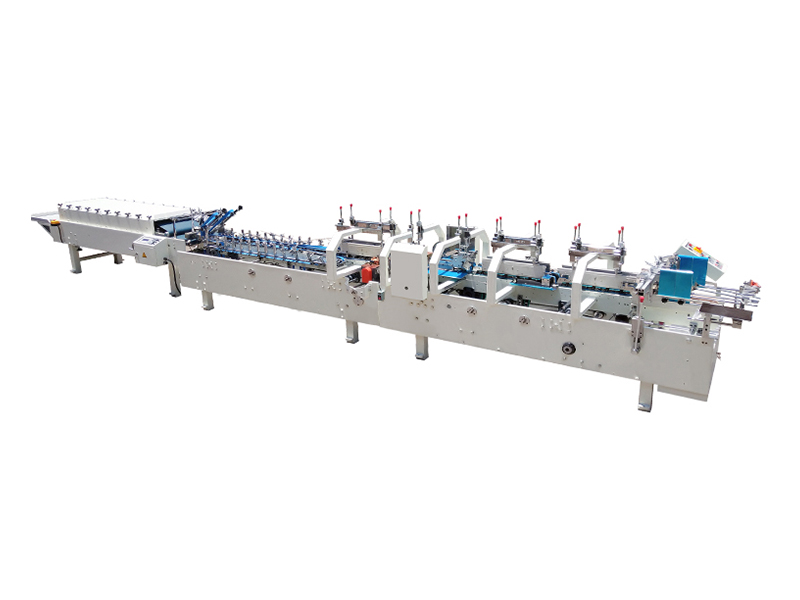

EASYFOLD 600G/700G/800G
Technical Parameters
|
Model |
EASYFOLD G series |
|
Usage paper |
200-800g/m2 cardboard E/F Corrugated |
|
Max. Speed |
220m/min |
|
Electric |
3.7kW,380v |
|
Glue Type |
Cold Glue |
|
Box Forming |
Either side folds, both sides fold, and bottom folds |
|
Binder |
Dissolve the type |
|
Way of folding |
3rd fold 135°、135°，1st,2nd＆4th fold 180° |
Blank Size
|

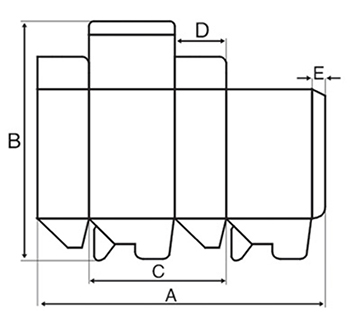

Standard Box |
||||
|
Model |
EASYFOLD 600G |
EASYFOLD 700G |
EASYFOLD 800G |
|
|
A |
110-600mm |
110-700mm |
130-800mm |
|
|
B |
60-500mm |
65-500mm |
80-600mm |
|
|
C |
50-270mm |
50-320mm |
60-370mm |
|
|
D |
7mm（min） |
7mm（min） |
10mm（min） |
|
|
E |
6mm（min） |
6mm（min） |
8mm（min） |
|
|

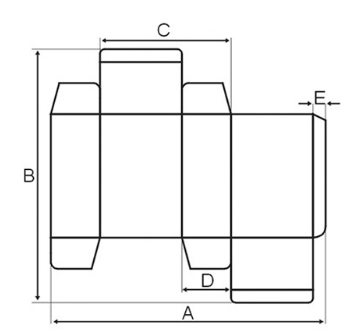

Lock Bottom Box |
||||
|
Model |
EASYFOLD 600G |
EASYFOLD 700G |
EASYFOLD 800G |
|
|
A |
160-600mm |
160-700mm |
180-800mm |
|
|
B |
65-500mm |
65-500mm |
80-600mm |
|
|
C |
80-270mm |
80-320mm |
90-370mm |
|
|
D |
40mm（min） |
50mm（min） |
60mm（min） |
|
|
E |
6mm（min） |
6mm（min） |
8mm（min） |
|
