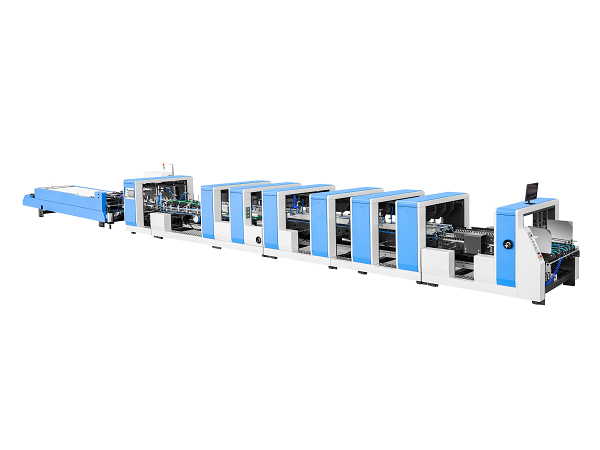

Platinum
Platinum series work with medium and large sized boxes in the heavy packaging industry. With high productivity, it offers the flexibility to run thin solid board to thick corrugated carton.Its design includes driven upper carriers, making easy the precise folding and closing micro-flute and corrugated boxes in its advance.
Platinum 1200/1450/1700/2100/2300/2800/3200-L
suitable for straight-line, crash-lock bottom and double wall boxes
Platinum 1200/1450/1700/2100/2300/2800/3200-LS
suitable for straight-line, crash-lock bottom, double wall and 4&6 corner boxes
Introduction
Platinum series work with medium and large sized boxes in the heavy packaging industry. With high productivity, it offers the flexibility to run thin solid board to thick corrugated carton.Its design includes driven upper carriers, making easy the precise folding and closing micro-flute and corrugated boxes in its advance.
Technical Parameters
| Model | 1200 | 1450 | 1700 | 2100 | 2800 | 3200 |
| Paper Material |
300-800g/m2 Paperboard F,E,C,B,A,EB,AB,EF Corrugated |
|||||
| Max. Speed | 200m/min | |||||
| Machine Length | 18000mm | 22000mm | ||||
| Machine Width | 1850mm | 2700mm | 2900mm | 3600mm | 4200mm | 4600mm |
| Total Power Consumption | 35kW | 42kW | 45kW | |||
| Max. Air Displacement | 0.7m³/min | |||||
| Net Weight | 10500kg | 14500kg | 15000kg | 16000kg | 16500kg | 17000kg |

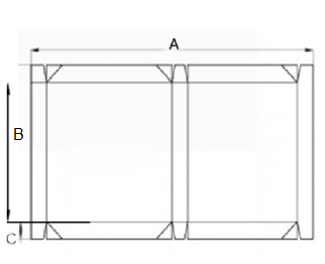

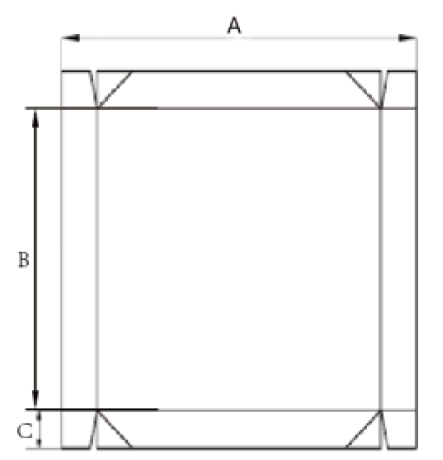

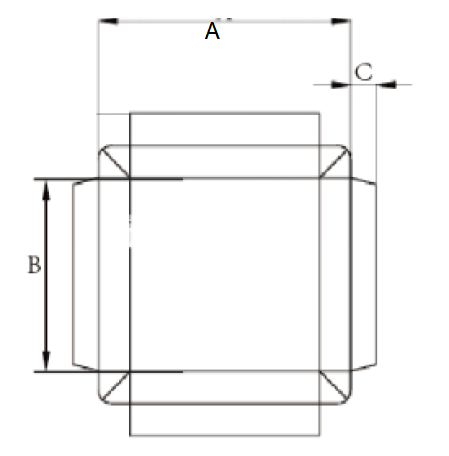

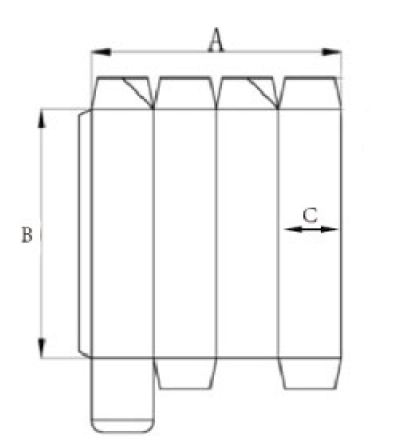

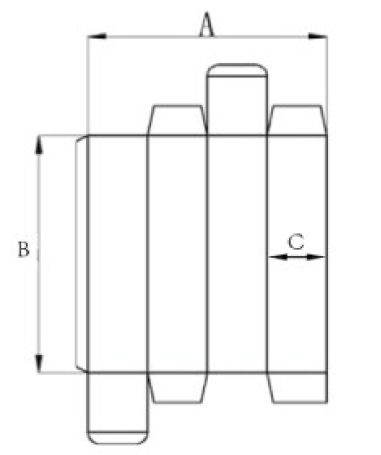

Blank Size
| Blank Size |
Platinum |
1200 | 1450 | 1700 | 2100 | 2300 | 2800 | 3200 |
 |
A | 240-1200 | 240-1450 | 420-1700 | 520-2100 | 520-2300 | 520-2800 | 520-3200 |
| B | 150-1300 | 150-1300 | 150-1300 | 150-1300 | 150-1300 | 150-1300 | 150-1300 | |
| C | 120 Min | 120 Min | 210 Min | 260 Min | 260 Min | 260 Min | 260 Min | |
| D | 50 Min | 50 Min | 50 Min | 50 Min | 50 Min | 50 Min | 50 Min | |
 |
A | 420-1200 | 420-1450 | 420-1700 | 520-2100 | 520-2300 | 520-2800 | 520-3200 |
| B | 210 Min | 210 Min | 210 Min | 260 Min | 260 Min | 260 Min | 260 Min | |
| C | 100-840 | 100-840 | 100-940 | 100-940 | 100-940 | 100-940 | 100-940 | |
| D | 35-300 | 35-300 | 35-300 | 50-300 | 50-300 | 50-300 | 50-300 | |
| E | 50 Min | 50 Min | 50 Min | 50 Min | 50 Min | 50 Min | 50 Min | |
 |
A | 240-1000 | 240-1200 | 240-1480 | 320-1580 | 320-1680 | 320-1880 | 320-1880 |
| B | 120-940 | 120-1140 | 120-1420 | 160-1500 | 160-1600 | 160-1800 | 160-1800 | |
| C | 30-200 | 30-200 | 30-200 | 40-200 | 40-200 | 40-200 | 40-200 | |
| D | 1000 Max | 1000 Max | 1000 Max | 1100 Max | 1100 Max | 1100 Max | 1100 Max | |
| E | 100 Min | 100 Min | 100 Min | 150 Min | 150 Min | 150 Min | 150 Min | |
 |
A | 1000 Max | 1200 Max | 1400 Max | 1750 Max | 1850 Max | 2100 Max | 2100 Max |
| B | 800 Max | 800 Max | 900 Max | 900 Max | 900 Max | 900 Max | 900 Max | |
| C | 100 Min | 100 Min | 100 Min | 150 Min | 150 Min | 150 Min | 150 Min | |
| D | 450 Max | 540 Max | 640 Max | 800 Max | 850 Max | 950 Max | 950 Max | |
| E | 35-150 | 35-200 | 35-200 | 50-200 | 50-200 | 50-200 | 50-200 | |
 |
A | 240-1200 | 240-1450 | 420-1700 | 520-2100 | 520-2300 | 520-2800 | 520-2800 |
| B | 120-1100 | 120-1300 | 210-1300 | 260-1300 | 260-1300 | 260-1300 | 260-1300 | |
| C | 120 Min | 120 Min | 120 Min | 275 Min | 275 Min | 275 Min | 275 Min | |
| D | 50 Min | 50 Min | 50 Min | 50 Min | 50 Min | 50 Min | 50 Min |
