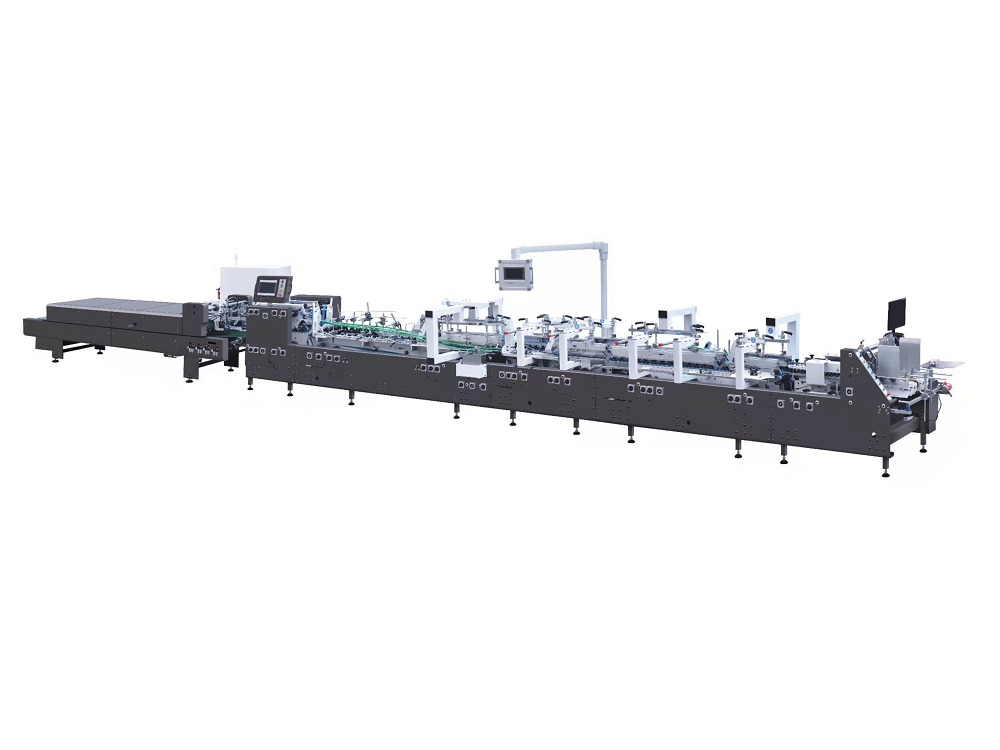

SPRINTFOLD 650/850/1100
SPRINTFOLD is suitable for the most demanding packaging companies, commercial printers and finishers. It is optimized to run small & medium sized boxes like the ones used in pharmaceutical or cosmetic industries. It is flexible to operate and it comes with modular design. The standard version includes the accessories for straight line and crash lock bottom boxes. Four Corner/ Six Corner-Box reserve lock system is added upon the request. Transmission system is made up of hexagonal steel and multi-ribbed belt. It is efficient, quiet, low maintenance cost. All shafts are covered by the stainless steel helical shield, which eliminate the operator's injury
SPRINTFOLD 650/850/1100-L
suitable for straight-line, crash-lock bottom and double wall boxes
SPRINTFOLD 650/850/1100-LS
suitable for straight-line, crash-lock bottom, double wall and 4 & 6-corner boxes
Introduction
SPRINTFOLD is suitable for the most demanding packaging companies, commercial printers and finishers. It is optimized to run small & medium sized boxes like the ones used in pharmaceutical or cosmetic industries. It is flexible to operate and it comes with modular design. The standard version includes the accessories for straight line and crash lock bottom boxes. Four Corner/ Six Corner-Box reserve lock system can be added upon the request. Transmission system is made up of hexagonal steel and multi-ribbed belt. It is efficient, quiet, low maintenance cost.
All shafts are covered by the stainless steel helical shield, which eliminate the operator’s injury
Technical Parameters
| Model | SPRINTFOLD 650 | SPRINTFOLD 850 | SPRINTFOLD 1100 |
| Paper Material | 200-800g/m2 Paperboard | 200-800g/m2 Paperboard | 200-800g/m2 Paperboard |
| Max. Speed | 400m/min | 400m/min | 400m/min |
| Folding Way in Reverse | First crease line pre-folder up to 180°and Third crease line pre-folder up to 135° | First crease line pre-folder up to 180°and Third crease line pre-folder up to 135° | First crease line pre-folder up to 180°and Third crease line pre-folder up to 135° |
| Glue Type | Water based glue | Water based glue | Water based glue |
| Power Supply | 380V 3P 50HZ | 380V 3P 50HZ | 380V 3P 50HZ |
| The Hook Servo | 4kW | 4kW | 4kW |
| The Feed Servo | 3kW | 5kW | 5kW |
| Main Motor Consumption | 7.5kW | 11kW | 11kW |
| Total Power Consumption | 18kW | 25kW | 25kW |
| Net Weight | 5500kg | 6500kg | 7000kg |
| Dimension (mm) | 13000×1250×1250 | 15300×1450×1300 | 15300×1650×1500 |

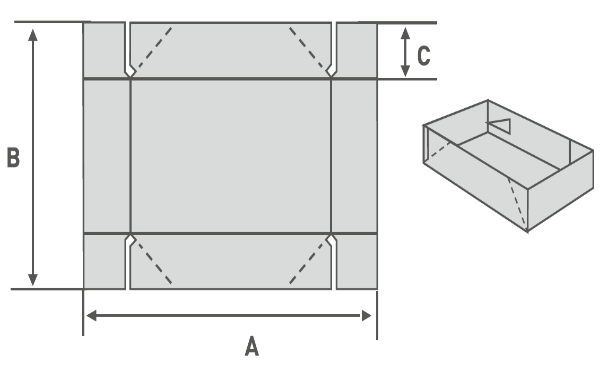

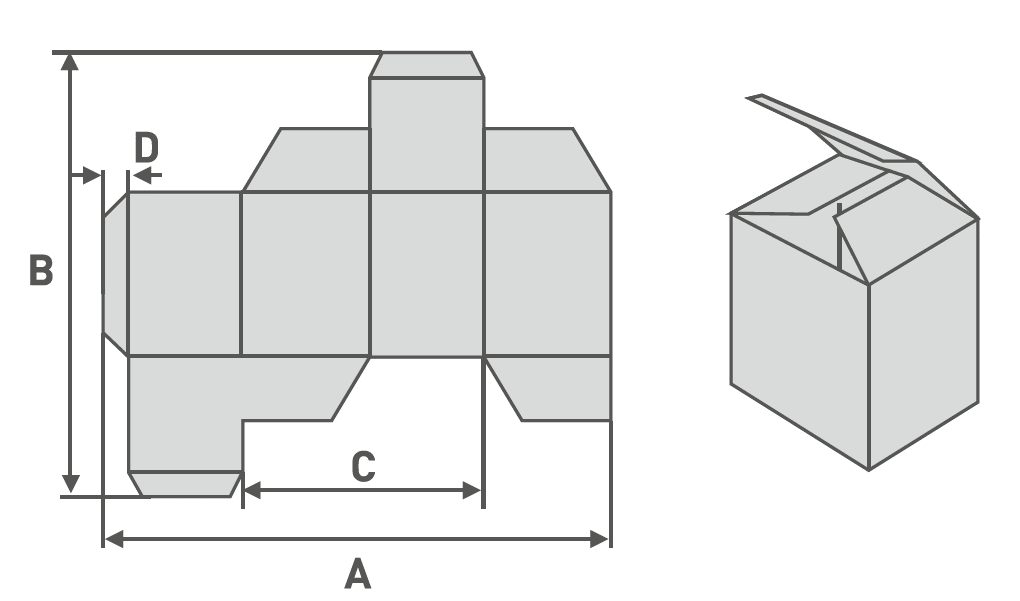

Blank Size
