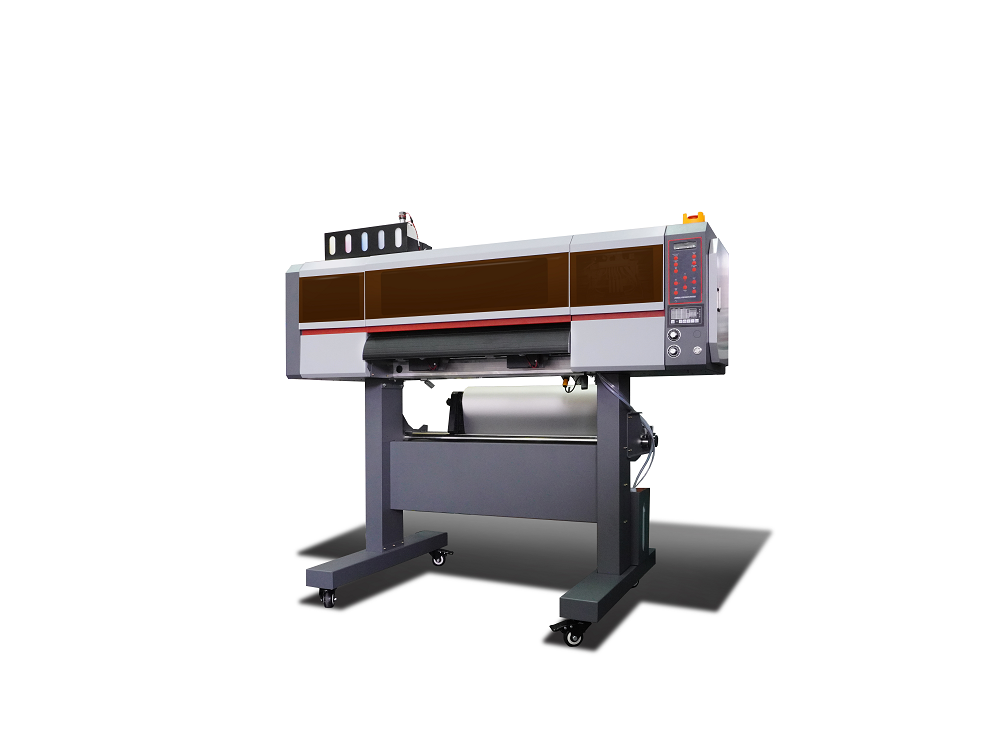

UV DTF

Utilizing a UV printer for Direct-to-Film (DTF) printing can have clear, vibrant highly durable and highly customized printed image. The UV energy from the printer’s light source will dry and cure the ink immediately upon contact with the film, allowing for quick turnaround times on short-run jobs. All in all, UV DTF is a great option for anyone looking for quick and consistent prints without sacrificing quality.

Introduction

Utilizing a UV printer for Direct-to-Film (DTF) printing can have clear, vibrant highly durable and highly customized printed image. The UV energy from the printer’s light source will dry and cure the ink immediately upon contact with the film, allowing for quick turnaround times on short-run jobs. All in all, UV DTF is a great option for anyone looking for quick and consistent prints without sacrificing quality.


Technical Parameters

Model UV DTF 70 UV DTF 60 UV DTF 30
Max. Printing Width 700mm 620mm 360mm
Max. Printing Head No.  4pcs 4pcs 3pcs
Printing Head Type  i3200-U1/1600/XP600/TX800  i3200-U1/1600/XP600/TX800  1600/XP600/TX800
Ink Box Type  UV 1.5L ink box with liquid level alarm UV 1.5L ink box with liquid level alarm UV 0.5L ink box with liquid level alarm
Color Configuration C+M+Y+K+W+V+LM+LC+LB+LLB C+M+Y+K+W+V+LM+LC+LB+LLB C+M+Y+K+W+V+LM+LC
Printing Medium  Release Paper, Release Film, AB Film  Release Paper, Release Film, AB Film  Release Paper, Release Film, AB Film
Support System Win7 and above Win7 and above Win7 and above
RIP Software RIPRINT/Maintop 6.0 RIPRINT/Maintop 6.0 RIPRINT/Maintop 6.0
Picture Format  Tiff, Jpeg, Bitmap, Eps, PDF, PNG Tiff, Jpeg, Bitmap, Eps, PDF, PNG Tiff, Jpeg, Bitmap, Eps, PDF, PNG

Printing Speed with three printing heads

 3720*1200dpi(4Pass)

i3200-U1:10m2

1600:4.5m2

XP600::3.3m2

i3200-U1:10m2

1600:4.5m2

XP600::3.3m2

TX800:4m2

1600:3.5m2

XP600::4m2

Printing Speed with three printing heads  720*1800dpi(6Pass)

i3200-U1:6m2

1600:3.5m2

2XP600::2.3m2

i3200-U1:6m2

1600:3.5m2

XP600::2.3m2

TX800:2.3m2

1600:2.5m2

XP600::2.3m2

Printing Speed with three printing heads     720*2400dpi(8Pass)

i3200-U1:3m2

1600:2.5m2

XP600::1.3m2

i3200-U1:3m2

1600:2.5m2

XP600::1.3m2

TX800:1.3m2

1600:2m2

XP600::3.8m2

Power Supply 1.8kW AC220V/110V(±5%),50HZ/60HZ 1.8kW AC220V/110V(±5%),50HZ/60HZ 1.8kW AC220V/110V(±5%),50HZ/60HZ
Machine Dimension 1950×960×1660(mm) 1400×700×1520(mm) 1200×1130×730(mm)
Packing Size 2440×850×720(mm) 2160×900×740(mm) 1220×850×800(mm)
Net Weight  320kg 200kg 110kg
Gross Weight  364kg 284kg 144kg
Interface TCP/IP TCP/IP TCP/IP
Working Environment Temperature 18  28Humidity35  80%RH Temperature 18  28Humidity35  80%RH Temperature 18  28Humidity35  80%RH


Finished Product
