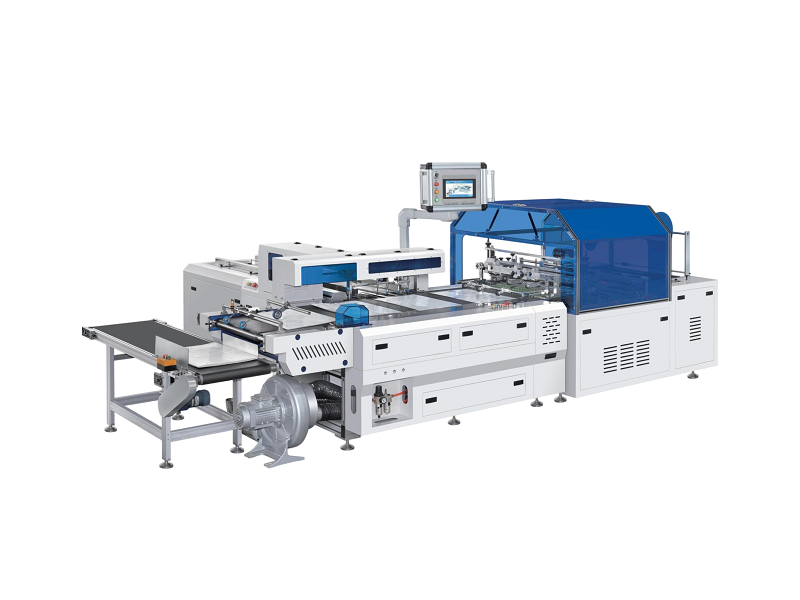

Automatic Bagging Machine
Equipped with a built-in collation function, this machine allows multiple products to be packaged into a single bag. It can be configured in accordance with the customer requirements to achieve the desired collation effect.
Introduction
Equipped with a built-in collation function, this machine allows multiple products to be packaged into a single bag. It can be configured in accordance with the customer requirements to achieve the desired collation effect
Technical Parameters
| Model | BM120 | BM210 | BM300 | BM380 |
| Max. Speed (bags/min) | 40-70 | 30-50 | 20-40 | 20-30 |
| Max. Packing Size (mm) | 125×300 | 210×320 | 300×420 | 380×580 |
| Min. Packing Size (mm) | 58×70 | 80×80 | 150×150 | 230×320 |
| Packing Thickness (mm) | 2-20 | 2-30 | 2-30 | 20 |
| Film Thickness (mm) | 0.04-0.06 | 0.03-0.06 | 0.03-0.06 | 0.03-0.06 |
| Max. Film Diameter (mm) | 420 | 420 | 420 | 420 |
| OPP Film Format (mm) |
Max:129×300 Min:62×70 |
Max:220×320 Min:88×80 |
Max:330×420 Min:158×150 |
Max:400×560 Min:240×320 |
| Total Pocket Width of Both Sides (mm) | ±7-8 | ±7-8 | ±7-8 | ±7-8 |
| Power Consumption (kW) | 8 | 8 | 8 | 10 |
| Weight (kg) | 2200 | 2200 | 2300 | 2500 |
| Dimension (mm) | 4500×3200×1650 | 4500×3200×1650 | 4500×3200×1650 | 5800×3500×1650 |
