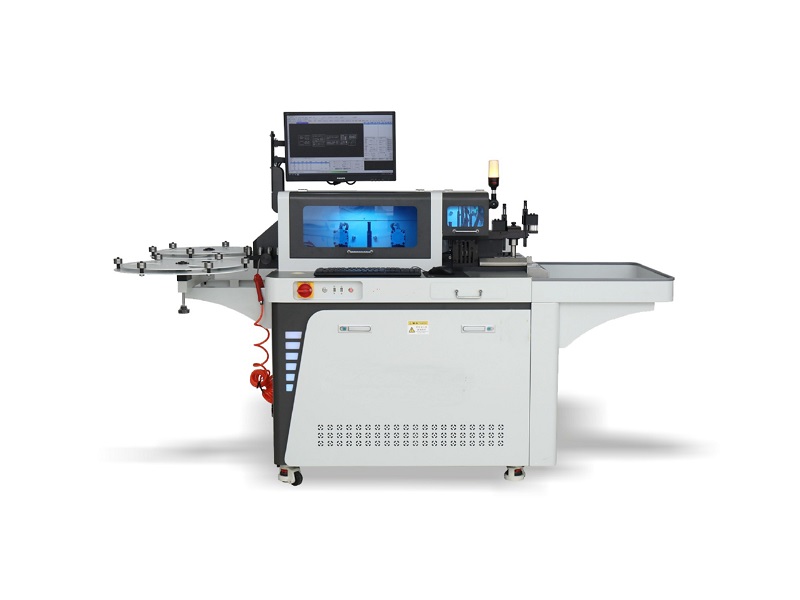

Automatic Steel Rule Bending Machine
It is a specialized industrial dispensing system designed to manage and distribute steel rule dies or blades, which are precision tools used in die-cutting processes.
Features
Auto Bending, Lipping, Bridging, Flat Cutting, Straight cutting, No-slot joint can do in one machine automatically
Manual Bridging Width: 3~15mm, Height: 5~22mm
It's available to customize one set of mold for 50*1.42mm
Double clamps system guarantee continuous and stable feeding.
Material Specification: Height: 7~60mm, Thickness: 0.45~1.07mm
Applications: High-end printing dies, blister packing dies, sticker dies, screen protector dies, cigarette packing dies, etc.
Auto steel rule holder is optional for bender, the holder can take 5 different type of steel rule
Technical Parameters
|
Max bending angle |
95° |
|
Min arc radius of 180° |
R3.5 |
|
Min arc radius of 90° |
R1.0 |
|
Min cutting size |
1.0mm |
|
Min bending size |
1.5mm |
|
Power |
2.65KW |
|
Setting of bridge |
Height can be adjusted by block within
15-18mm |
|
Overall dimensions(L*W*H) |
2.4m×1.1m×1.7m |
|
Weight |
350kg |
|
Motor type |
Panasonic/Fuji Servo Motor, bridge 1500w, bending 750w, feeding 400w |
|
Power supply |
220V, 50/60Hz |
|
Mold lifetime |
≧300,000 times |
|
Air compressor |
6-8kg/cm² |
|
Operation system |
Windows 10 |
|
Support language |
Chinese, English, German, Customized |
|
Support file format |
DXF, AI, DWG, CDR etc. |
|
Computer |
Industrial computer |
