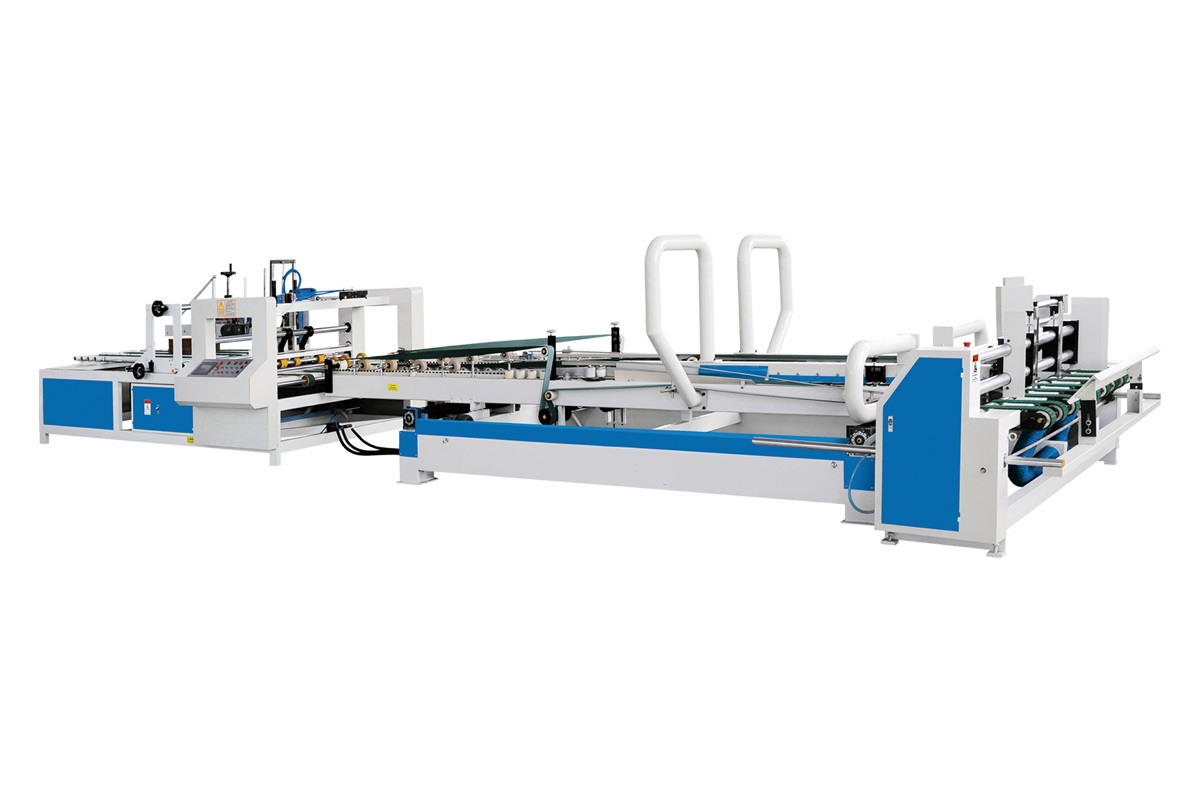

G-FOLD Classic
G-FOLD Classic especially suitable for regular slotted container. It consist of three sections: feeding unit, folding unit, counter& stacker unit. The average working speed is 150 meters per minute.
Introduction
G-FOLD Classic especially suitable for regular slotted container. It consist of three sections: feeding unit, folding unit, counter& stacker unit. The average working speed is 150 meters per minute.
Technical Parameters
|
Model |
G-FOLD Classic 2800 |
|
Max. Blank Size (mm) |
1250×2600 |
|
Min. Blank Size (mm) |
260×700 |
|
Dimensions (mm) |
12500×3200×1600 |
|
Weight |
6500kg |
|
Power Supply |
380V 3P 50HZ |
|
Total Power Consumption |
12 kW |

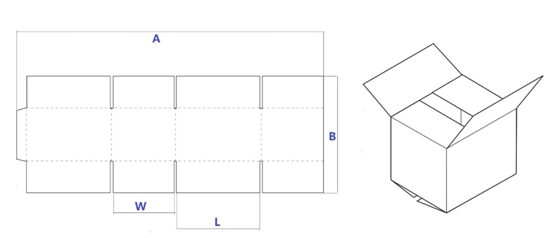

Blank Size
|
Model |
G-FOLD Classic 2400 |
G-FOLD Classic 2600 |
G-FOLD Classic 2800 |
|
Size A（mm） |
700-2100 |
700-2300 |
700-2600 |
|
Size B（mm） |
260-1050 |
260-1150 |
260-1250 |
|
Size W（mm） |
195-840 |
195-840 |
195-840 |
|
Size L（mm） |
105-880 |
105-880 |
105-880 |
