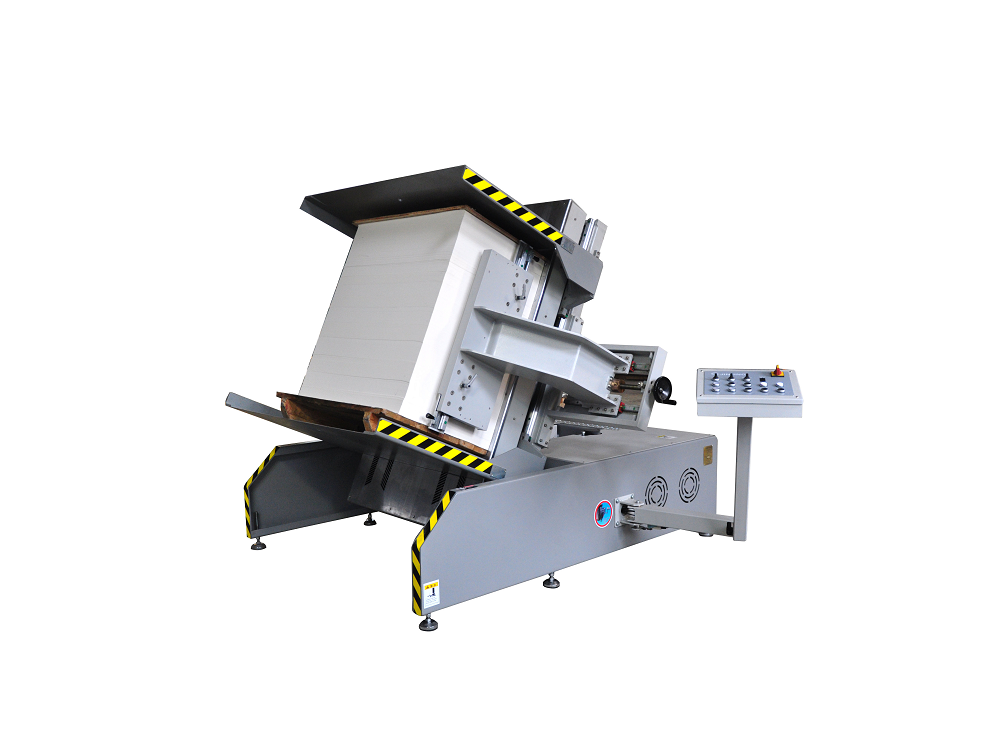

Pile Turner
The paper-pile turning machine can be used before printing, polishing and processing. By using the machine, a stack of paper is cleaned up and piled up neatly so that papers can fly into the machine in smooth way, cases of double sheets and dirt or dust on the type area won't easily happen and work efficiency and quality can be promoted. The machine can also be used in post-print process, such as rolling over the back if paper, reprinting, back polishing, and change of the pallet, packaging and transportation.This is a good machine with on occupational injuries, which helps save both time and manpower and promotes work efficiency
Introduction
The paper-pile turning machine can be used before printing, polishing and processing. By using the machine, a stack of paper is cleaned up and piled up neatly so that papers can fly into the machine in smooth way, cases of double sheets and dirt or dust on the type area won't easily happen and work efficiency and quality can be promoted. The machine can also be used in post-print process, such as rolling over the back if paper, reprinting, back polishing, and change of the pallet, packaging and transportation.This is a good machine with on occupational injuries, which helps save both time and manpower and promotes work efficiency
Technical Parameters
| Model | SPPL1250 | SPPL1450 | SPPL1650 |
| Max. Sheet Size (mm) | 800×1300 | 1060×1450 | 1220×1650 |
| Max. Load (kg) | 1000 | 1800 | 1900 |
| Platform Width (mm) | 1400 | 1550 | 1800 |
| Platform Depth (mm) | 800 | 1080 | 1235 |
| Max. Pile Height (Include the tray) (mm) | 1400 | 1600 | 1600 |
| Min. Pile Height (Include the tray) (mm) | 630 | 830 | 830 |
| Power Requirements (kW) | 10.5 | 17 | 17 |
| Dimension (L×W×H) (mm) | 2150×2990×1820 | 2430×3130×2100 | 2790×3400×2260 |
| Net Weight (kg) | 3200 | 3500 | 4500 |
| Turning | Available | Available | Available |
| Air | Available | Available | Available |
| Aligning | Available | Available | Available |
| Jogging | Available | Available | Available |
