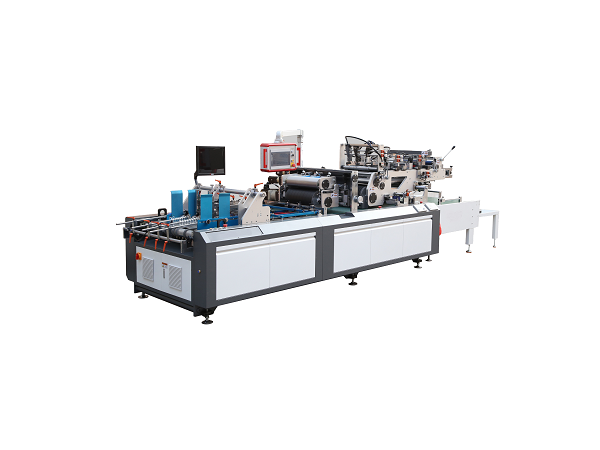

WINDOW PATCHER 880S/1150S Agile
WINDOW PATCHER 880S/1150S Agile is driven by 13 servo motors independently. The unit type design allows you to replace and add mechanical modules upon the requirements of customers. It has the multi-purpose function of one machine. The module double-knife can not only paste the flat window on the high speed, but also paste the creasing window with high precision. At the same time, it has film line pressing and V-angle stamping, film pattern marking, paper tissue box film opening, film punching, thin film embossing logo function.
Introduction
WINDOW PATCHER 880S/1150S Agile is driven by 13 servo motors independently. The unit type design allows you to replace and add mechanical modules upon the requirements of customers. It has the multi-purpose function of one machine. The module double-knife can not only paste the flat window on the high speed, but also paste the creasing window with high precision. At the same time, it has film line pressing and V-angle stamping, film pattern marking, paper tissue box film opening, film punching, thin film embossing logo function.
Technical Parameters
| Model | 880S Agile | 1150S Agile |
| Max. Feeding Paper Format | W880xL720mm | W1150xL850mm |
| Min. Feeding Paper Format | W110XL110mm | W120XL120mm |
| Paper Range | Kraft Paper：150-1500g/㎡ White Cardboard：230-1500g/㎡ | Kraft Paper：150-1500g/㎡ White Cardboard：230-1500g/㎡ |
| Corrugated Paper：≤5mm | Corrugated Paper：≤5mm | |
| Max. Film Size | W450xL450mm | W550xL550mm |
| Min. Film Size | W30xL65mm | W30xL70mm |
| Max. Film Unwinding Diameter | 450mm | 450mm |
| Film Thickness | PE/PE:0.05-0.2mm PVC:0.02-0.2mm APET/PET:0.02-0.2mm | PE/PE:0.05-0.2mm PVC:0.02-0.2mm APET/PET:0.02-0.2mm |
| Film Precision | ±1mm | ±1mm |
| Maximum Speed | Paper L≤330mm：30000pcs/h | Paper L≤400mm：20000pcs/h |
| Paper L＞330mm：15000pcs/h | Paper L＞400mm：10000pcs/h | |
| Quantity of Servo Motor | 13sets | 13sets |
| Total Power Consumption | 13kW | 18kW |
| Dimension | L5700xW1700xH1600mm | L5700xW1900xH1600cm |
| Weight | 2330kg | 3400kg |

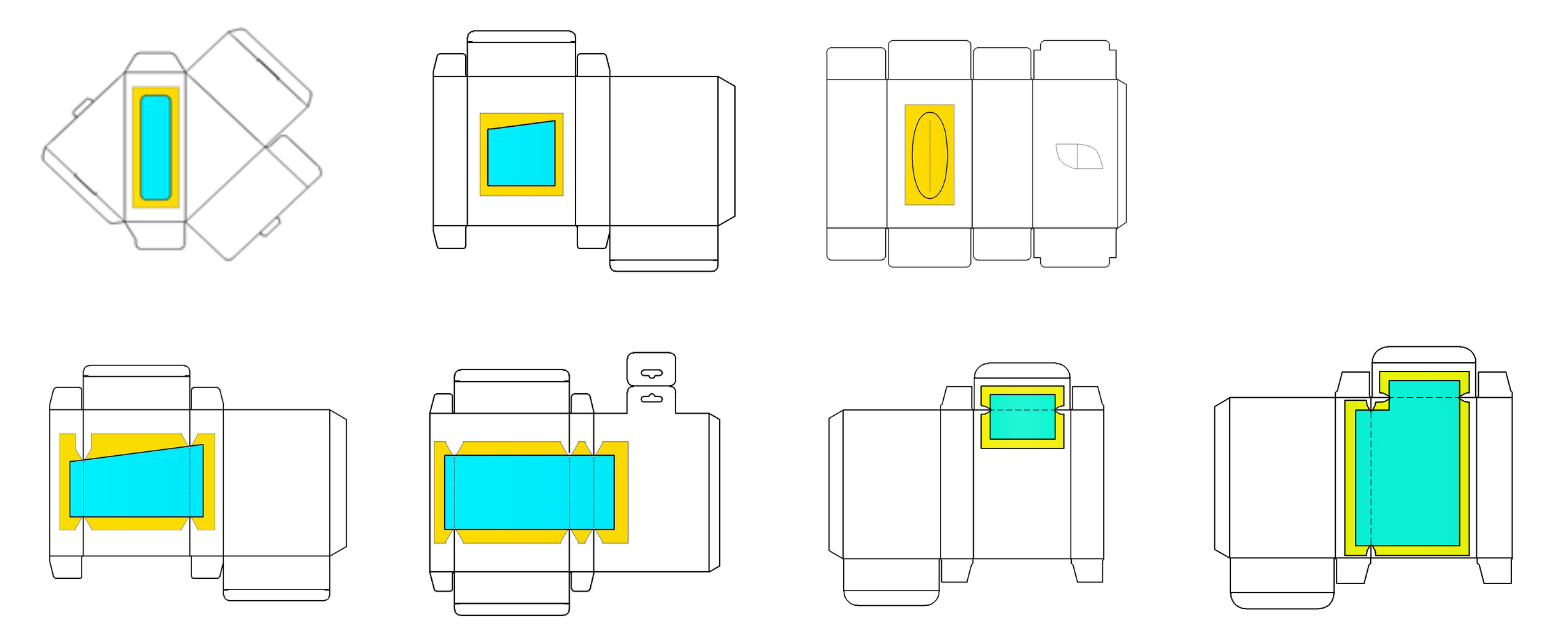

Blank Drawing
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
WINDOW PATCHER 860Agile
WINDOW PATCHER 860Agile is widely used in the window patching to the liquor box, gift box, tissue box, cosmetic box, toy box, etc. It can be used for window film cutting, creasing, gluing and patching of card.
Learn More

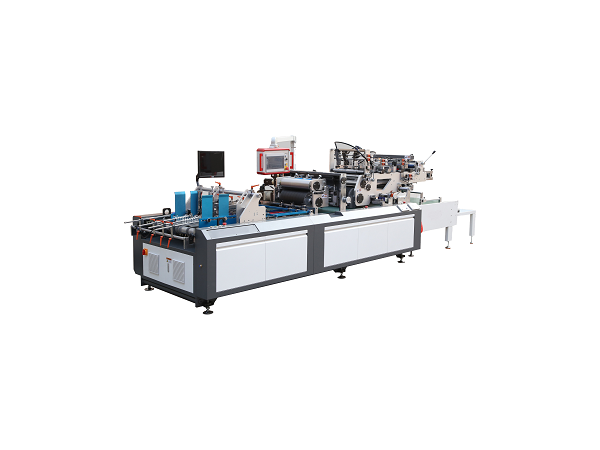

WINDOW PATCHER 880S/1150S Agile
