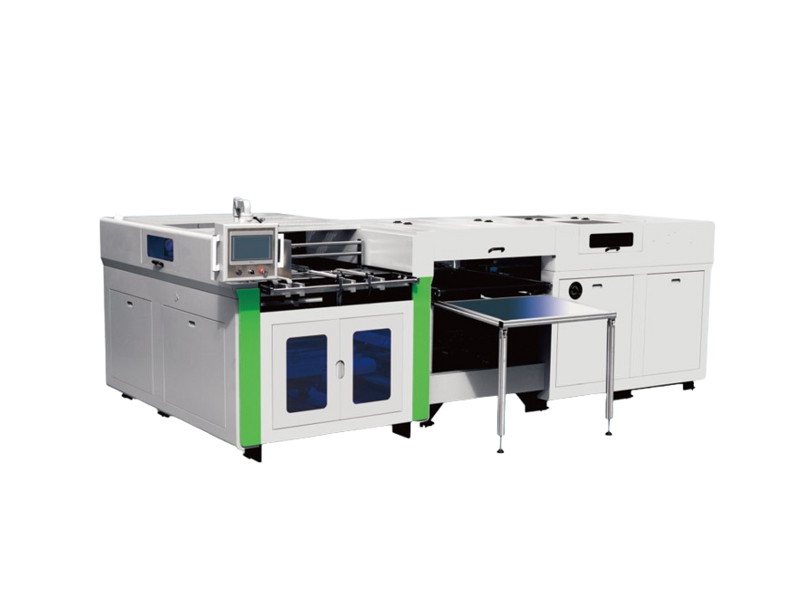

Automatic Grooving Machine SPGM1000-W
The machine is mainly used for making V groove on ash cardboard, copperplate paper, glossy paper, mounted cardboard, paper board and MDF board etc.
Introduction
The machine is mainly used for making V groove on ash cardboard, copperplate paper, glossy paper, mounted cardboard, paper board and MDF board etc.
Technical Parameters
|
Min. Feeding Format |
130×130mm |
|
Max. Feeding Format |
650×920mm |
|
Groove Degree |
80°-140° adjustable |
|
Main Machine Deviation Correction Length |
895mm |
|
Auxiliary Machine Auxiliary Deviation Correction Length |
1130mm |
|
Auxiliary Machine Deviation Correction Length |
1000mm |
|
Speed |
50-100m/min |
|
Best Accuracy (mm) |
±0.1 |
|
Normal Error (mm) |
±0.2 |
|
Power Consumption |
6 kW |
|
Dimension (mm) L×W×H |
2400×1560×1650 2890×1530×1400 |
|
Weight |
3500kg |
