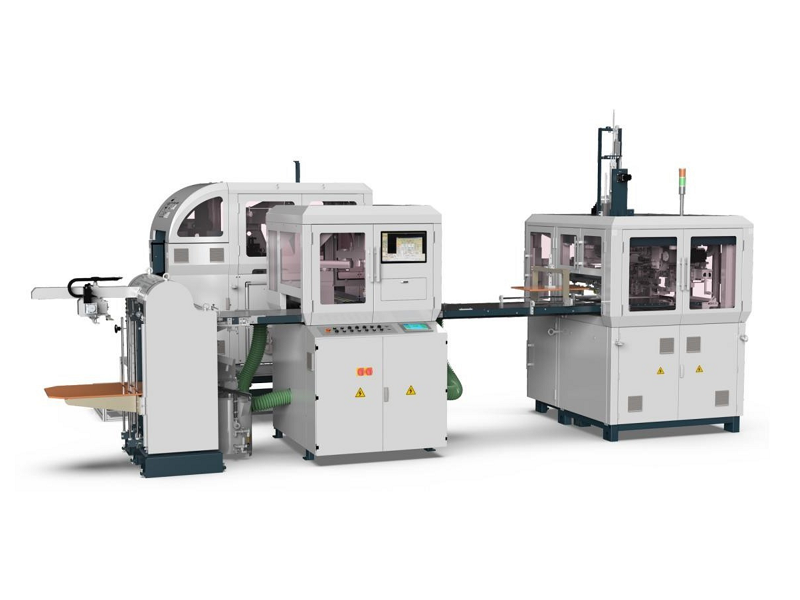

Automatic Rigid Box Maker ARBM6418K
Spotter by camera tracing system and SCARA (Selective Compliance Assembly Robot Arm)(spotting inaccuracy ±0.05mm)
Introduction
ARBM6418K Automatic Rigid Box Machine which designed for digital setting, It is suitable to make various types of boxes for mass production, such as mobile phone boxes, gift boxes, cosmetic boxes, watch boxes, etc. Size range is bigger and more suitable for current packaging market. Machine's appearance is new design which is safer and more beautiful. The feeder, the gluer and the conveyor are driven by well-known servos which have continuously variable transmission, and enjoys high accuracy, easy adjusting, and efficiency. The spotting unit adopts camera tracing system and robot arm to pick and spot the greyboard ,enhancing the spotter accuracy to ± 0.05mm and its spotting and adjusting is more faster. The forming unit employs Japan THK linear slider and virtual electronic cam driving system, guaranteeing the stable quality and fluent movement and enlarge the folding-in depth and corner edges.
Technical Parameters
|
ARBM-6418K Automatic Rigid Box Maker |
||
|
Greyboard Size (D=Length, C=Width) |
D (Max.) |
820 mm |
|
D (Min.) |
124 mm |
|
|
C (Max.) |
580 mm |
|
|
C (Min.) |
92 mm |
|
|
Thickness (T) |
1–3 mm |
|
|
Paper Size (D=Length, C=Width) |
B (Max.) |
850 mm |
|
B (Min.) |
180 mm |
|
|
A (Max.) |
610 mm |
|
|
A (Min.) |
95 mm |
|
|
Paper Thickness |
80–160 gsm |
|
|
Finished Box Size (L=Length, W=Width, H=Height) |
L (Max.) |
600 mm |
|
L (Min.) |
100 mm |
|
|
W (Max.) |
400 mm |
|
|
W (Min.) |
50 mm |
|
|
H (Max.) |
130 mm |
|
|
H (Min.) |
12 mm |
|
|
Paper Corner Edge |
E |
10–125 mm |
|
Folding in Depth |
R |
15–100 mm |
|
Paper Pile Height Max. |
750 mm |
|
|
Greyboard Pile Height Max. |
850 mm |
|
|
Glue Tank Volume |
40 L |
|
|
Air Supply |
460 L/min, 0.8 MPa |
|
|
Speed |
≤30 pcs/min |
|
|
Total Power / Voltage |
39 kW / AC 380 V |
|
|
Power Consumption |
10 kW/h |
|
|
Net Weight |
6800 kg |
|
|
Machine Dimension |
6800 × 4500 × 3600 mm |
|
Finished Product
