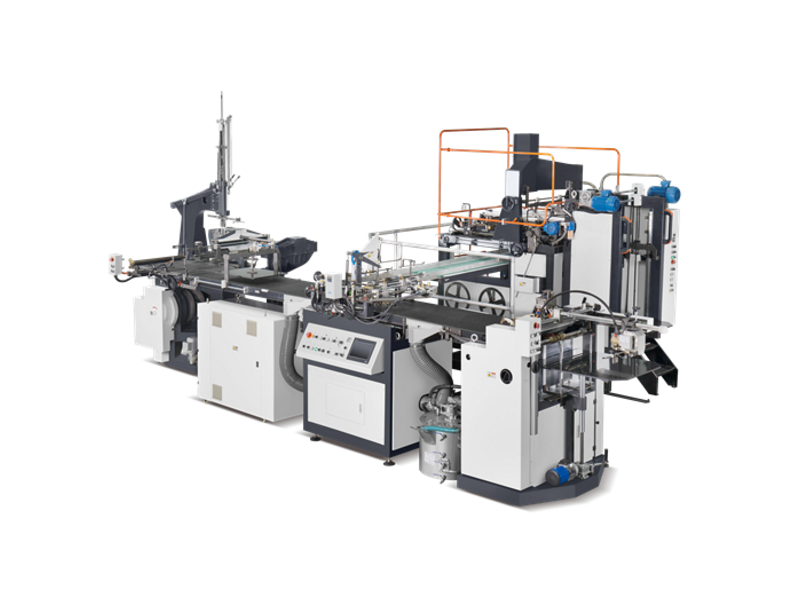

Automatic Rigid Box Maker ARBM6040
PLC programmable controller, photoelectric tracking system, hydraulic pneumatic system and touch screen human-machine interface are used to realize automatic paper feeding, paper gluing, automatic cardboard conveying, cardboard forming and pasting, positioning and pasting, box forming and other actions at one time.
Introduction
The Automatic Rigid Box Maker is the ideal equipment for making top-grade high-quality paper boxes with sky and earth covers. It has reasonable design, reliable performance and the same technical level in the world. PLC programmable controller, photoelectric tracking system, hydraulic pneumatic system and touch screen human-machine interface are used to realize automatic paper feeding, paper gluing, automatic cardboard conveying, cardboard forming and pasting, positioning and pasting, box forming and other actions at one time. The production of the whole machine is fully automatic and online, and the production efficiency is more than 30 times higher than that of the traditional process. It can be used to make high-grade paper boxes such as shoe boxes, shirt boxes, jewelry boxes, mobile phone boxes, moon cake boxes, gift boxes, etc.
Technical Parameters
|
ARBM6040 Automatic Rigid Box Maker |
||
|
Box Size(A×B) |
A min |
120mm |
|
A max |
610mm |
|
|
B min |
250mm |
|
|
B max |
850mm |
|
|
Paper Thickness |
100-200g/m2 |
|
|
Cardboard Thickness |
0.8~3mm |
|
|
Finished Product (box) Size (W×L×H) |
W min |
50mm |
|
W max |
400mm |
|
|
L min |
100mm |
|
|
L max |
600mm |
|
|
H min |
15mm |
|
|
H max |
150mm |
|
|
Folded Edge Size(R) |
R min |
10mm |
|
R max |
35mm |
|
|
Precision |
±0.30mm |
|
|
Speed |
≦35sheets/min |
|
|
Motor Power |
10.35kw/380v 3phase |
|
|
Electric Heating Power |
6kw |
|
|
Machine Weight |
6800kg |
|
|
Machine Dimension(L×W×H) |
L6600×W4100×H 3250mm |
|
Finished Product
